3.5″-Speaker rubber surround – SBR rubber edge

Short Description:

Key features: Excellent wear resistance, Good high&low temperature resistance, Good aging resistance

The displayed product is one of our well sale products, which is made of SBR material with 3.5-inch rubber edge.

For quotation, samples or customized OEM/ODM request,
please click the button below, we are happy to reply.

Model:ND70-114

Material:SBR

Business Type: Manufacturer with OEM/ODM service


Product Detail

Product Tags

Product Detail

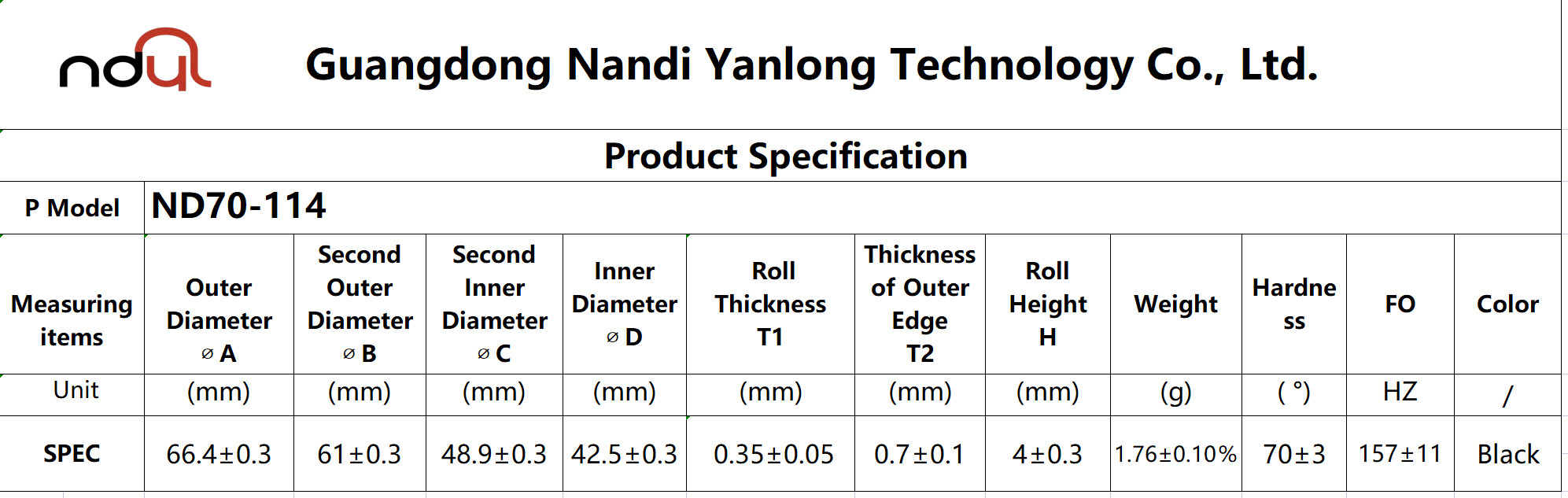

542e690d08b4e2a0985ecfdafa05d05
Product Detail

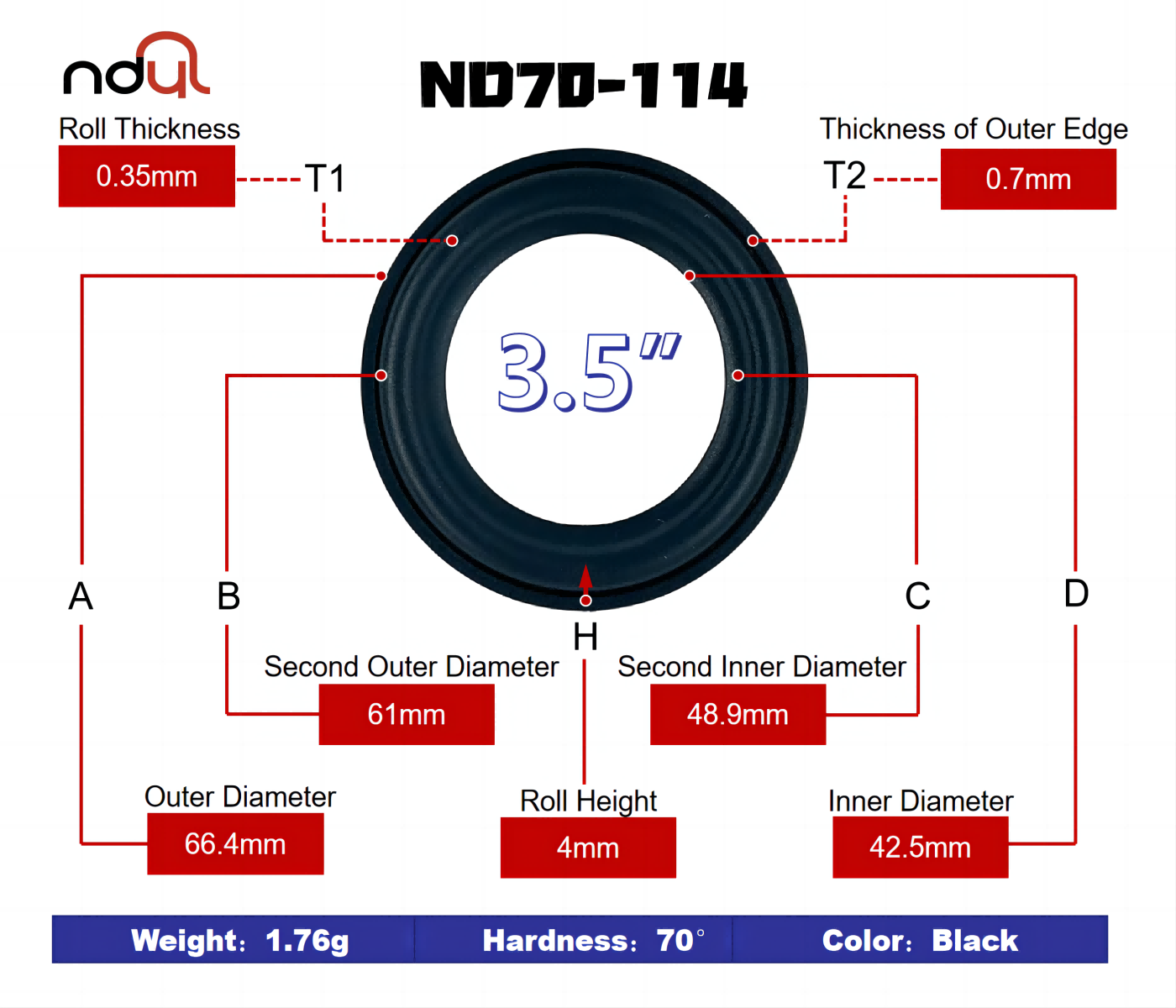

7cca4a75a36268304fcba3b7d35e923

Surface Treatment

surface treatment

Edge design

Edge design

Customizd Contetn

Material NBR SBR IIR EPDM Foaming
Size 1mm-21mm 1mm-21mm 1mm-21mm 1mm-21mm 3mm-12mm
Hardness 45°-85° 45°-85° 45°-85° 45°-85° 55°-75°
Thicken 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm 0.15mm-10mm
Shape Round, oval, irregular, etc., accept foreign molds, and support customized molds
Color Black, gray, etc. according to customer requirements
Surface treament Smooth, frosted, undercut, etc. according to customer requirements
Edge design High-pressure strip, texture, reverse concave edge, notch, punching, etc. according to customer requirements




SBR stands for styrene-butadiene rubber, is a synthetic rubber commonly produced worldwide. Styrene-butadiene or styrene-butadiene rubber (SBR) describe families of synthetic rubbers derived from styrene and butadiene.

A surround’s quality has enormous impact on the frequency response of a loudspeaker. The shore hardness directly affects the frequency of the speaker. Rubber surrounds also endure a long lifetime, almost 20~30years.

Styrene-butadiene rubber offers a range of advantages. It is resistant to water and glycol and very hardwearing. SBR offers good abrasion resistance, outstanding impact strength, good resilience and high tensile strength. SBR is the best synthetic elastomer to use in dynamic and abrasive conditions. The main applications of SBR include automotive parts and mechanical rubber goods. It also has heat aging resistance and delivers good compression set and water resistance. It is often used as a direct replacement for natural rubber, due to its similar characteristics but more economical price tag.

It is the addition of the organic compound styrene that contributes towards SBR’s advantageous strength, abrasion, wear and bonding properties, not to mention its affordability. Styrene-butadiene rubber generally offers superior heat-ageing properties and abrasion resistance than natural rubber. It is widely used in the production of tire tape, hose, wires, cables, medical instruments and various rubber products. It is the largest generic synthetic rubber variety and one of the earliest rubber varieties to achieve industrial production.

Our advantages

111
Our advantages2

Term:EXW/FOB/CIF/CFR/DDP

Port: Shen Zhen/Guang Zhou/Ning Bo/Shang Hai

Package:Export Standard Unified Carton Packaging.

Special service: help find low freight and freight counter-offer

DDP

FAQ

Q1: Can you make OEM/ODM or custom order?
Answer 1: We welcome OEM/ODM or customized product list.

Q2: What is the packaging of your products?
Answer 2: The packaging method is based on the cartons uniformly used by the company, and special packaging will be charged separately.

Q3: Can I get samples from you for testing?
Answer 3: Customers are welcome to take samples for testing. Our company supports free samples of existing models. You only need to bear the freight.

Q4: What are the terms of payment?
Answer 4: 30% T/T deposit, 70% T/T balance payment before delivery. If there is special need, it can be negotiated.

Q5: Can I visit your factory?
Answer 5: 1. In the epidemic environment, our company provides remote online factory detection service. Please contact our business. 2. Welcome to visit the company for field inspection. Please make an appointment in advance before the investigation, so as not to delay your schedule.
